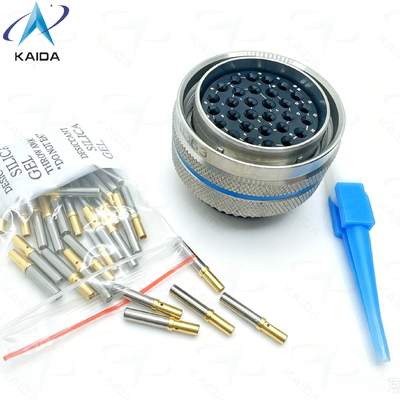

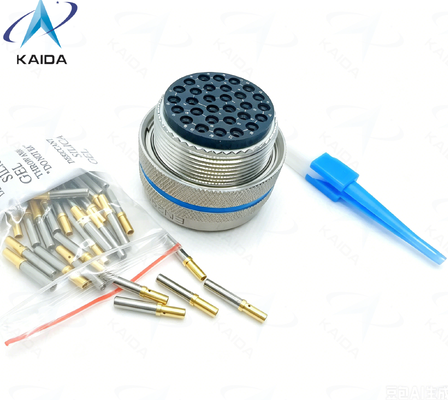

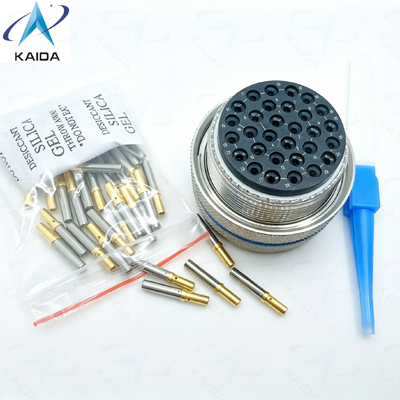

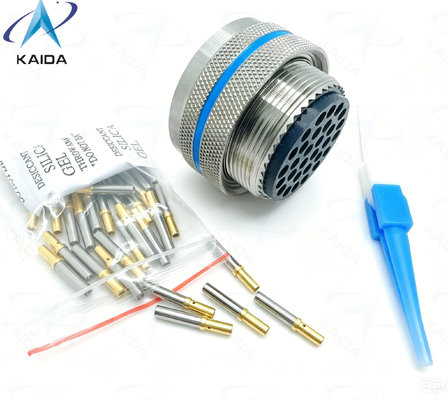

SS Connector Shell Circular Electrical Connector 30 Contacts.EN2997 high temperature firewall connectors.EN2997SE62430F6.853 series

Part number:EN2997SE62430F6

Product Description:

The Circular Electrical Connector from the EN2997 series is a high-performance connector designed for demanding applications that require reliable and durable electrical connections. With a current rating of 13 A, this connector is well-suited for a variety of industrial, aerospace, and environments where stable and consistent electrical performance is critical. Its robust construction and advanced features make it a preferred choice for engineers and technicians who need dependable connectivity in extreme conditions.

One of the standout features of this Circular Electrical Connector is its stainless steel screw coupling connector design, which is derived from the MIL-C-83723 standard. This heritage ensures that the connector maintains rigorous  specifications, providing exceptional mechanical strength and resistance to corrosion, wear, and environmental factors. The stainless steel screw coupling mechanism guarantees a secure and vibration-proof connection, which is essential in applications exposed to high levels of mechanical stress and harsh environmental conditions.

The connector accommodates 30 contacts, allowing for multiple circuits to be connected within a single unit. This high contact density makes it an ideal solution for complex wiring systems where space-saving and efficient connections are paramount. Each contact is designed to handle a current rating of up to 13 A, ensuring that the connector can support significant electrical loads without compromising safety or performance.

In addition to its robust mechanical design, the connector employs crimp contacts, which are known for their reliability and ease of installation. Crimp contacts provide an excellent electrical connection by securely attaching the wire conductor to the contact through a crimping process, which eliminates the need for soldering and reduces assembly time. The use of crimp contacts also improves the overall durability of the connection by minimizing the risk of contact loosening or corrosion over time. The connector includes multiple crimp contacts to accommodate the 30 contacts, ensuring consistent and reliable electrical performance across all circuits.

This Circular Electrical Connector is engineered to operate in a wide temperature range, from -55℃ to +175℃. This broad operating temperature range makes it suitable for use in extreme environments, such as aerospace, defense, and industrial applications where temperature fluctuations can be severe. The materials and design of the connector ensure that it maintains its electrical and mechanical integrity even under these challenging thermal conditions.

The EN2997 series Circular Electrical Connector combines ruggedness, reliability, and versatility. Its stainless steel screw coupling connector derived from MIL-C-83723 ensures a secure and durable connection, while the incorporation of crimp contacts simplifies installation and enhances long-term performance. The connector’s 30 contacts and 13 A current rating provide a high-density, high-current solution for complex wiring needs.

In summary, this Circular Electrical Connector from the EN2997 series is an ideal choice for professionals seeking a robust, reliable, and efficient electrical connector capable of performing in extreme conditions. Its stainless steel screw coupling connector design, compliance with MIL-C-83723 standards, use of crimp contacts, and wide operating temperature range from -55℃ to +175℃ make it a superior component for critical applications requiring high current capacity and dependable multi-contact connectivity.

Features:

• Product Name: Circular Electrical Connector
• Part Number: EN2997SE62430F6
• Connector Type: Circular Electrical Connector
• Contact Type: Crimp
• Current Rating: 13 A
• Operating Temperature: -55℃ to +175℃
• Straight plug design
• 30 pins for multiple connections
• EN2997 high temperature firewall connectors

Technical Parameters:

Applications:

The KAIDA EN2997SE62430F6 Circular Electrical Connector is a high-performance connector designed for demanding applications that require reliable and secure electrical connections. Originating from China and belonging to the EN2997 series, this connector features a robust stainless steel (SS) shell that ensures exceptional durability and resistance to harsh environmental conditions. Its design incorporates crimp contacts, which provide secure and stable electrical connections, making it ideal for applications where vibration and mechanical stress are prevalent.

One of the primary application occasions for the EN2997SE62430F6 connector is within aerospace and defense industries. Specifically, it is widely used as part of the EN2997 high temperature firewall connectors, which are essential for maintaining electrical integrity in high-temperature zones such as aircraft firewalls. The connector’s ability to withstand extreme temperatures while maintaining a secure connection makes it indispensable in safety-critical systems where failure is not an option.

Additionally, this circular electrical connector is well-suited for industrial automation and machinery, where reliable connections must be maintained despite exposure to dust, moisture, and mechanical vibrations. The crimp contacts utilized in the KAIDA EN2997SE62430F6 ensure that electrical signals and power are transmitted efficiently and with minimal loss, which is crucial for maintaining optimal performance in automated processes and control equipment.

In the automotive sector, the EN2997SE62430F6 connector is employed in engine compartments and other areas subject to high temperatures and harsh environments. Its stainless steel shell provides excellent corrosion resistance, while the circular design facilitates easy mating and unmating in tight spaces. This makes it an excellent choice for vehicle manufacturers looking to enhance the reliability of their electrical systems.

Moreover, the connector finds application in marine and offshore equipment, where exposure to saltwater and extreme weather conditions demands connectors that can withstand corrosion and mechanical wear. The KAIDA EN2997SE62430F6’s crimp contacts and stainless steel shell make it a dependable option for maintaining electrical connectivity in these challenging environments.

Overall, the KAIDA EN2997SE62430F6 Circular Electrical Connector, with its high-quality crimp contacts and sturdy SS shell, is an ideal solution for applications requiring the EN2997 high temperature firewall connectors standard. Its versatility across aerospace, industrial, automotive, and marine scenarios highlights its capability to deliver dependable performance in environments where safety, durability, and reliability are paramount.

Customization:

KAIDA offers comprehensive product customization services for the EN2997SE62430F6 circular electrical connector, designed to meet diverse application requirements. This stainless steel screw coupling connector, derived from MIL-C-83723 standards, features 30 pins with crimp contacts to ensure reliable and secure connections. With a current rating of 13 A and an operating temperature range from -55℃ to +175℃, this connector is ideal for demanding environments. Manufactured in China, the EN2997 series connector combines durability and precision, making it a versatile choice for various electrical systems requiring robust performance and customization options.

Support and Services:

Our Circular Electrical Connector product is engineered to provide reliable and efficient connectivity solutions for a wide range of industrial and commercial applications. To ensure optimal performance and longevity, we offer comprehensive technical support and services tailored to your specific needs.

Technical support includes assistance with product selection, installation guidance, troubleshooting, and maintenance recommendations. Our expert team is committed to helping you resolve any issues quickly and effectively, minimizing downtime and maximizing productivity.

We provide detailed documentation, including datasheets, wiring diagrams, and user manuals, to facilitate correct usage and integration. Additionally, custom configuration services are available to meet unique application requirements.

For service and repair, our qualified technicians utilize advanced diagnostic tools and genuine replacement parts to restore your connectors to peak condition. Preventive maintenance programs are also offered to help extend the service life of your connectors and prevent unexpected failures.

Trust our dedicated support and services to ensure your Circular Electrical Connector performs reliably in even the most demanding environments.

Packing and Shipping:

Our Circular Electrical Connectors are securely packaged to ensure safe delivery and optimal protection during transit. Each connector is individually wrapped in anti-static material to prevent damage from electrostatic discharge.

The connectors are then placed in custom-fitted foam inserts within sturdy cardboard boxes to minimize movement and impact. For bulk orders, multiple units are organized in compartmentalized trays to enhance protection and ease of handling.

All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate efficient processing and delivery.

We offer a range of shipping options to meet your timeline and budget requirements, including standard, expedited, and freight services. Tracking information is provided promptly to keep you informed throughout the shipping process.

Our commitment to quality packaging and reliable shipping ensures that your Circular Electrical Connectors arrive in perfect condition, ready for immediate use.

FAQ:

Q1: What is the brand name of the Circular Electrical Connector?

A1: The brand name of the Circular Electrical Connector is KAIDA.

Q2: What is the model number of this Circular Electrical Connector?

A2: The model number is EN2997SE62430F6.

Q3: Where is the Circular Electrical Connector manufactured?

A3: This product is made in China.

Q4: What applications is the KAIDA Circular Electrical Connector suitable for?

A4: The KAIDA Circular Electrical Connector is typically used in industrial, automotive, and electronic equipment where reliable electrical connections are required.

Q5: What materials are used in the KAIDA Circular Electrical Connector?

A5: The connector is made from high-quality metals and durable plastics to ensure long-lasting performance and resistance to environmental factors.
